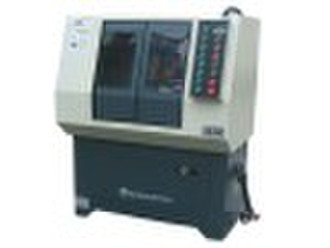

Horizontal Automatic Milling Machine

Manual horizontal milling machine will be used hydraulic power, so that the work of semi-automatic or automatic. Can also increase the power, smooth and improve consistency of precision. Improve the efficiency of production, one in control of several machines. Hydraulic horizontal milling machine for KS-214; KS-216; KS-222, etc.This Horizontal.milling machine having characteristics that high precision,easy to operate high production rate. Suitable for mass production. It can work mounting manul or pneumatic chuck to processing all kinds of metal and non-metallic material. * This milling machine uses the original installation Japanese NSK high precise high speed bearing. * This milling machine uses the NSK special-purpose high-quality lubricating oil. * The spindle Material is 12CRNI2 steel, High-frequency quenching HRC55-58, enable it both to have the steel and to have toughness. * The spindle speed may choose between 220 to 5200 rpm . Completely satisfies processing each kind of material quality. * The spindle precision, beats between 0.005-0.015MM. * The bed, work table complete ultrasonic frequency quenching, the quenching depth may reach 1-2MM. * The precisions that main axle and work bench, parallelism, verticality all between 0.005-0.015MMSpecificationsKS-216 BBench L×W (mm)600×160Max.Y.travel (mm)192Max.X.travel (mm)160Max.Z.travel (mm)280T-groove working surfaceNO.of groove3Groove width14Groove gap49Cutter bore diameter (mm)22Max.cutter outer diameter (mm)250Max.cutter thickness(mm)80Spindle speeds (rpm)390/1120Motor power (kw)2.2Motor speed (rpm)1400V-shaped belt lengthA53,A38Machine dimension (mm)1350×900×1650Machine weight (kg)600
